Tanksweep — Manway Cleaning System

    Tanksweep is a manway-mounted high-pressure cleaning gun system used as part of the NESL automated tank cleaning solution. It removes the need for personnel to enter tank bodies and supports safe, efficient cleaning of large crude oil storage tanks.

    Connected via hoses and hydraulically driven, the system installs through tank manways without rigid pipework, reducing leakage risk and handling intensity while delivering full-process visualization through HD cameras.

    Technical Specifications

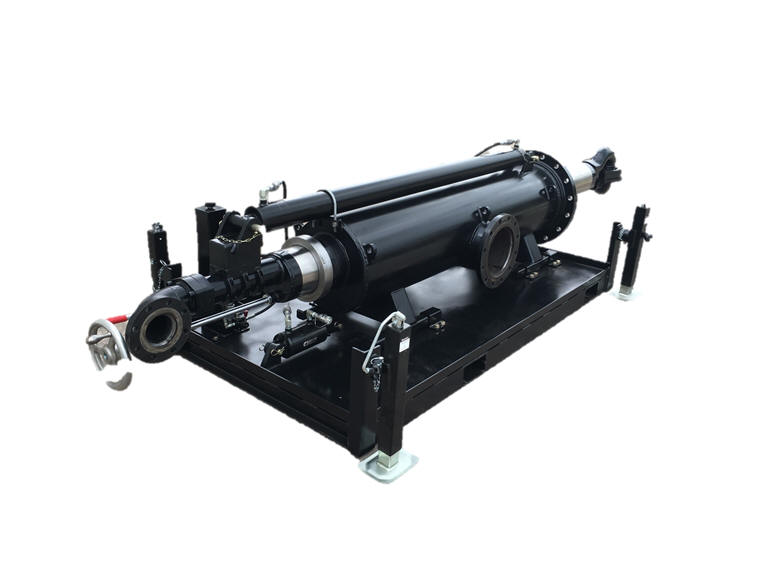

    Tanksweep system view 1

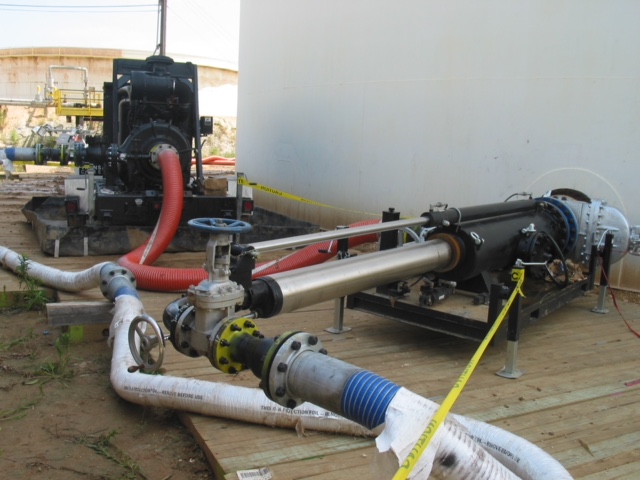

    Tanksweep system view 2

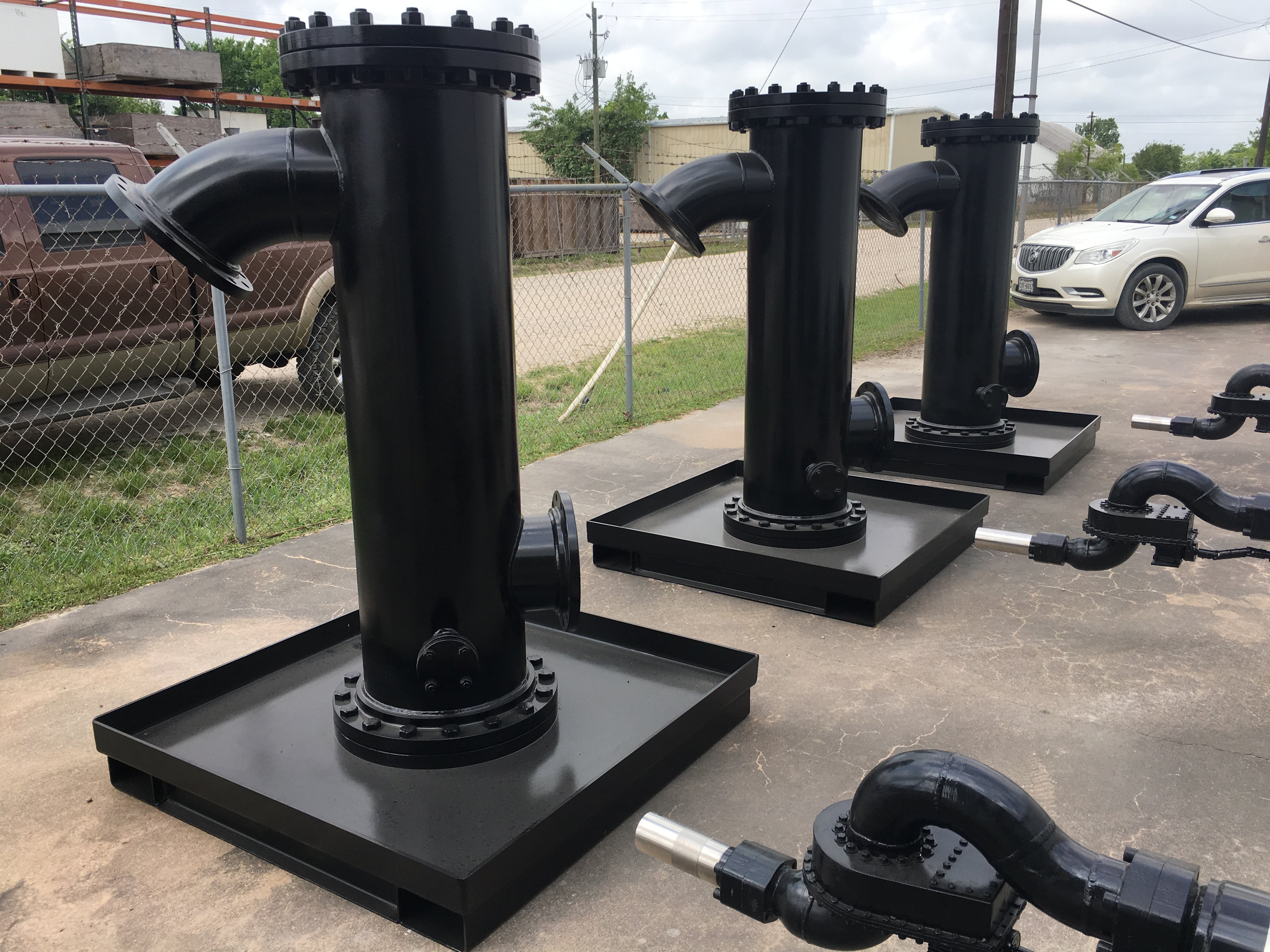

    Tanksweep system view 3

    Visualization

    HD Camera (with data recording)

    Explosion-proof Certification

    ATEX

    Water Flow Rate

    16 mm Nozzle Diameter / 1000 LPM

    Working Pressure

    14 bar

    Angle

    Horizontal rotation up to 300°, Vertical rotation up to 150°

    Sensors

    Oxygen concentration < 8%; LEL value < 25%

    Effective Range

    Up to 40 meters
