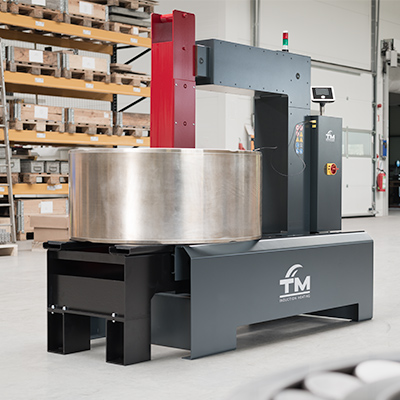

SURETHERM PRO 6X
Top-of-the-range SURETHERM PRO for the heaviest industrial bearings up to 1,600 kg / 3,527 lbs.
Product Description
The following yokes are included with SURETHERM PRO 6X: 150 × 150. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1500 mm are included as well.
Key Specifications
Voltage: 400 – 480 – 575 Vac
Frequency: 50 / 60 Hz
Max. current: 100 A
Weight: 650 kg / 1433 lbs
Operating Area (W×H): 685 × 705 mm / 26.97 × 27.76"
Footprint (L×B): 1500 × 800 mm / 59.06 × 31.50"
Workpiece — Min. bore diameter: ø 85 mm / ø 3.35"
Workpiece — Max. outer diameter: ø 2000 mm / ø 78.74"
Workpiece — Max. width: 695 mm / 27.36"
Workpiece — Max. weight: 1600 kg / 3527 lbs
