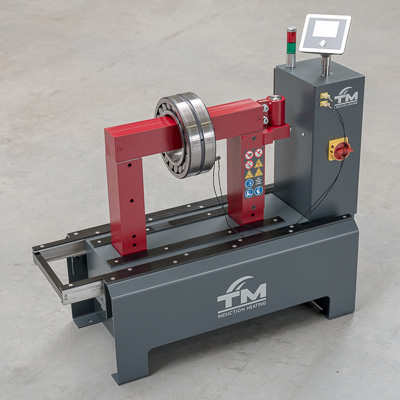

SURETHERM PRO 1X Pivot

Pivoting variant of the SURETHERM PRO 1X — same heavy capacity with ergonomic pivoting yoke handling.

Product Description

The following yokes are included with SURETHERM PRO 1X Pivot: 80 × 80. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.

The SURETHERM PRO 1X Pivot can also be supplied on a trolley (optional), so the device can be used on different locations in the workplace.

Key Specifications

Voltage: 400 – 480 – 575 Vac

Frequency: 50 / 60 Hz

Max. current: 32 A

Weight: 157 kg / 346 lbs

Operating Area (W×H): 330 × 300 mm / 12.99 × 11.81"

Footprint (L×B): 850 × 410 mm / 33.46 × 16.14"

Workpiece — Min. bore diameter: ø 30 mm / ø 1.18"

Workpiece — Max. outer diameter: ø 1000 mm / ø 39.37"

Workpiece — Max. width: 320 mm / 12.60"

Workpiece — Max. weight: 400 kg / 880 lbs

Downloads

Download User Manual Download Datasheet
