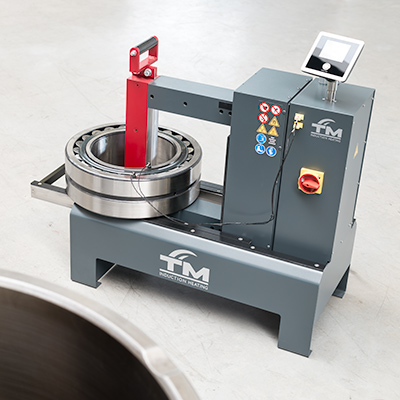

SURETHERM PRO 1X

Industrial PRO induction heater for heavy bearings up to 400 kg, with optional trolley for in-workshop mobility.

Product Description

The following yokes are included with SURETHERM PRO 1X: 80 × 80. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.

The SURETHERM PRO 1X can also be supplied on a trolley (optional), so the device can be used on different locations in the workplace.

Key Specifications

Voltage: 400 – 480 – 575 Vac

Frequency: 50 / 60 Hz

Max. current: 32 A

Weight: 157 kg / 346 lbs

Operating Area (W×H): 300 × 324 mm / 11.81 × 12.76"

Footprint (L×B): 850 × 410 mm / 33.46 × 16.14"

Workpiece — Min. bore diameter: ø 30 mm / ø 1.18"

Workpiece — Max. outer diameter: ø 1000 mm / ø 39.37"

Workpiece — Max. width: 315 mm / 12.40"

Workpiece — Max. weight: 400 kg / 880 lbs
