SAVAL CFI Rim Seal Fire Protection System
SAVAL CFI rim seal protection system is an automatic gas-based fire detection and extinguishing system for floating roof tank rim seal areas, using CF3I extinguishing gas.
Overview
The SAVAL CFI rim seal protection system is an automatic gas-based fire detection and extinguishing system for floating roof tank rim seal areas, using CF3I extinguishing gas.
The system detects fire at an early stage through thermal nozzles/detectors installed above the rim seal and releases CF3I extinguishing gas to rapidly suppress incipient rim seal fires, protecting critical hydrocarbon storage assets.

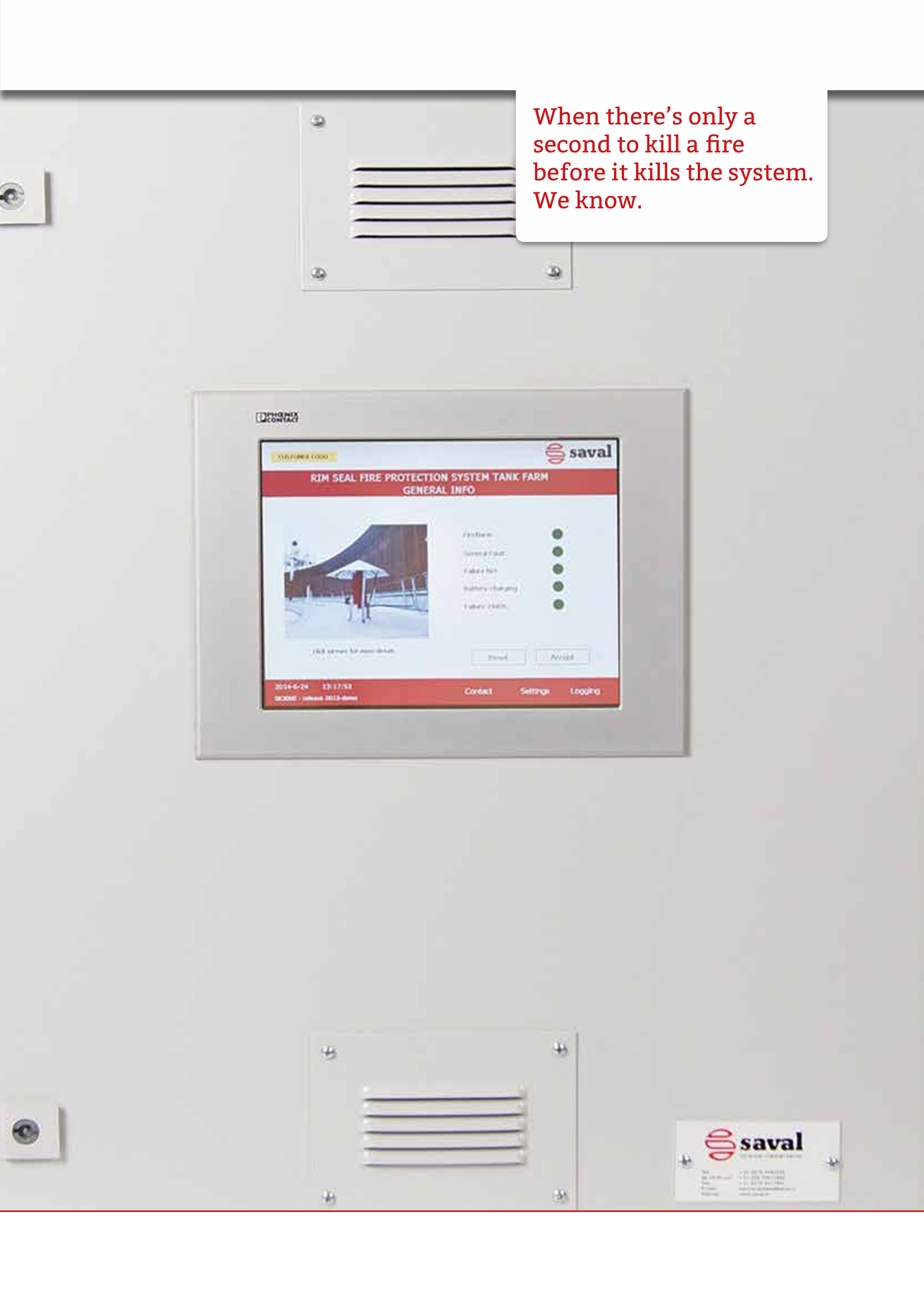

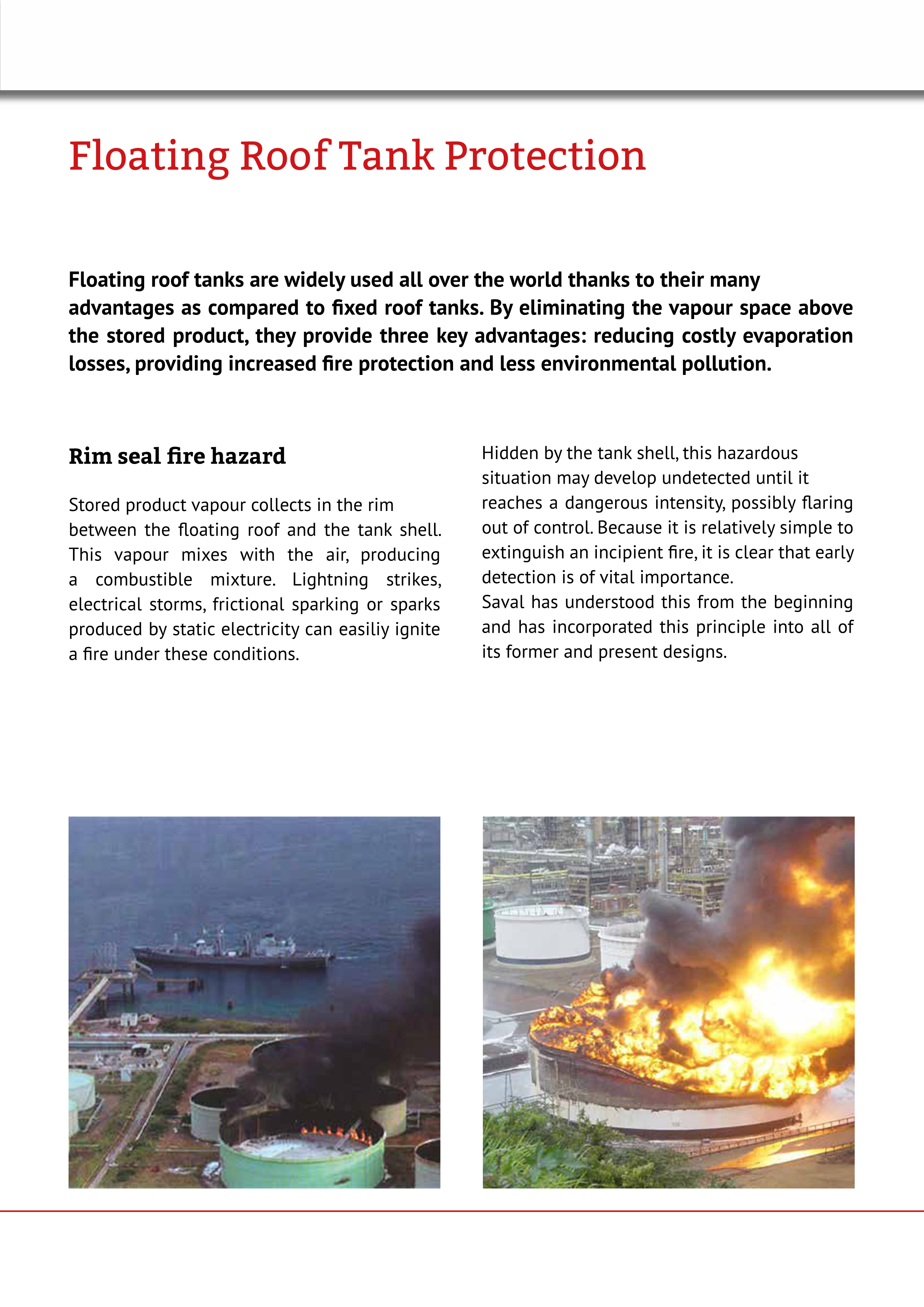

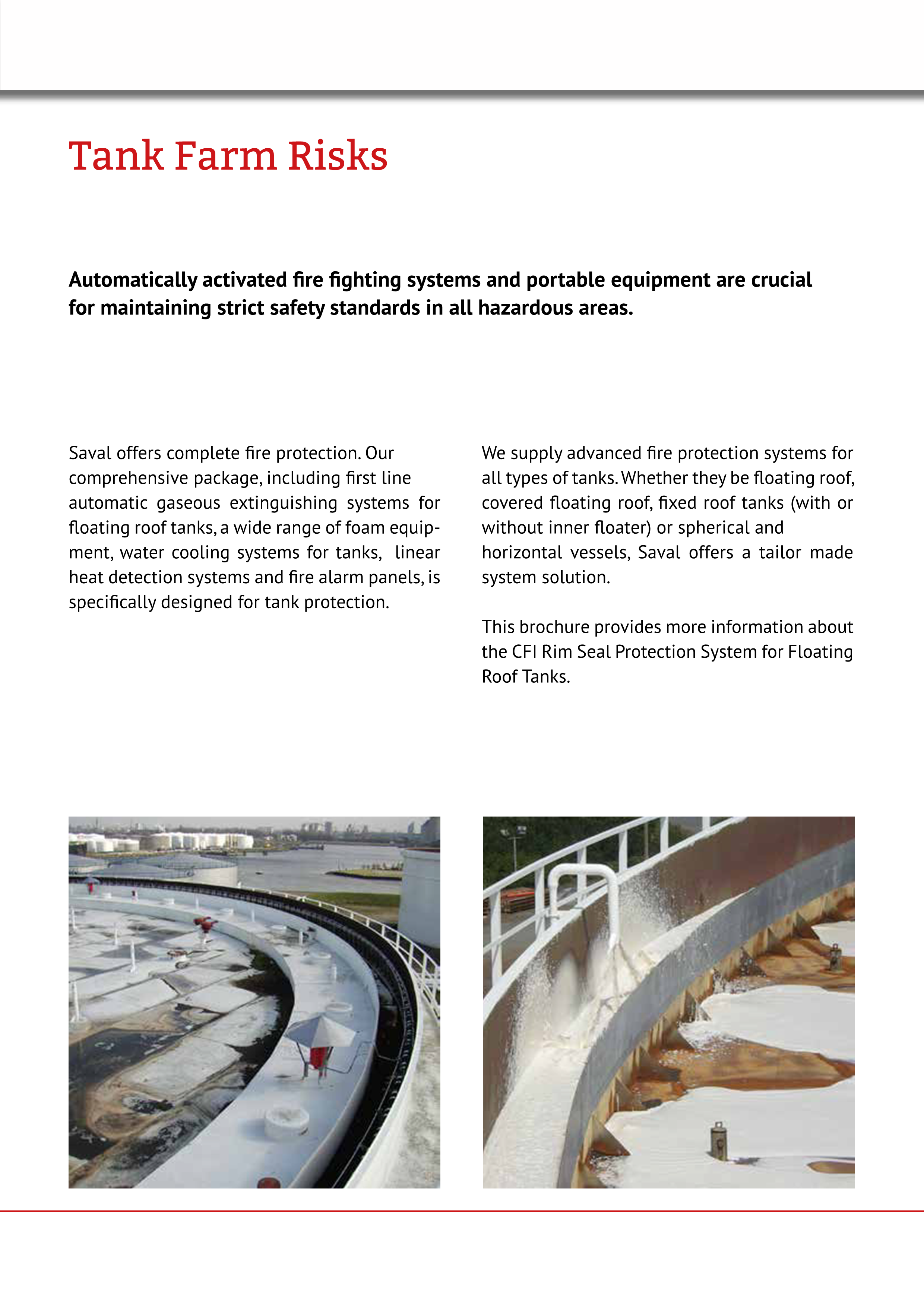

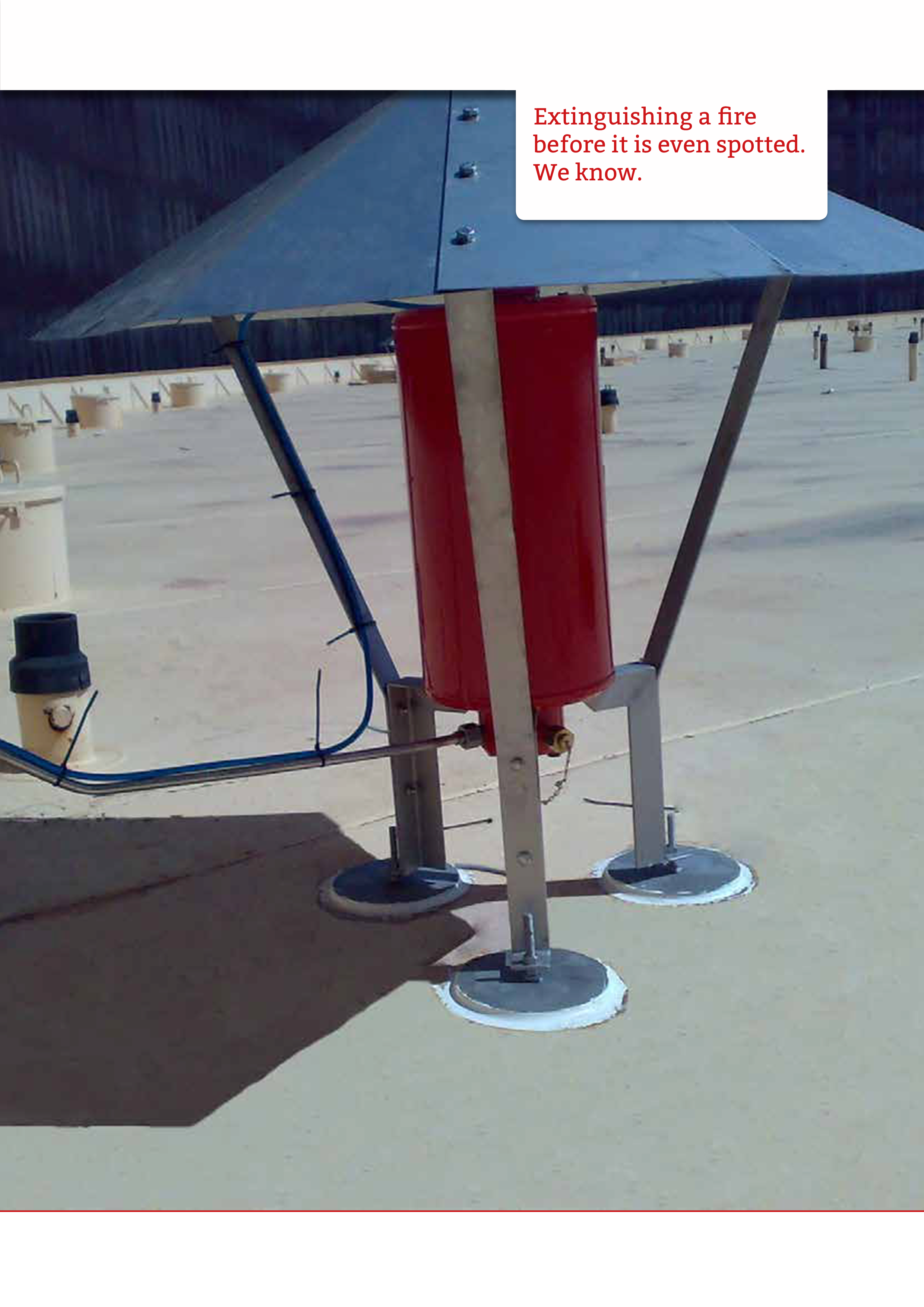

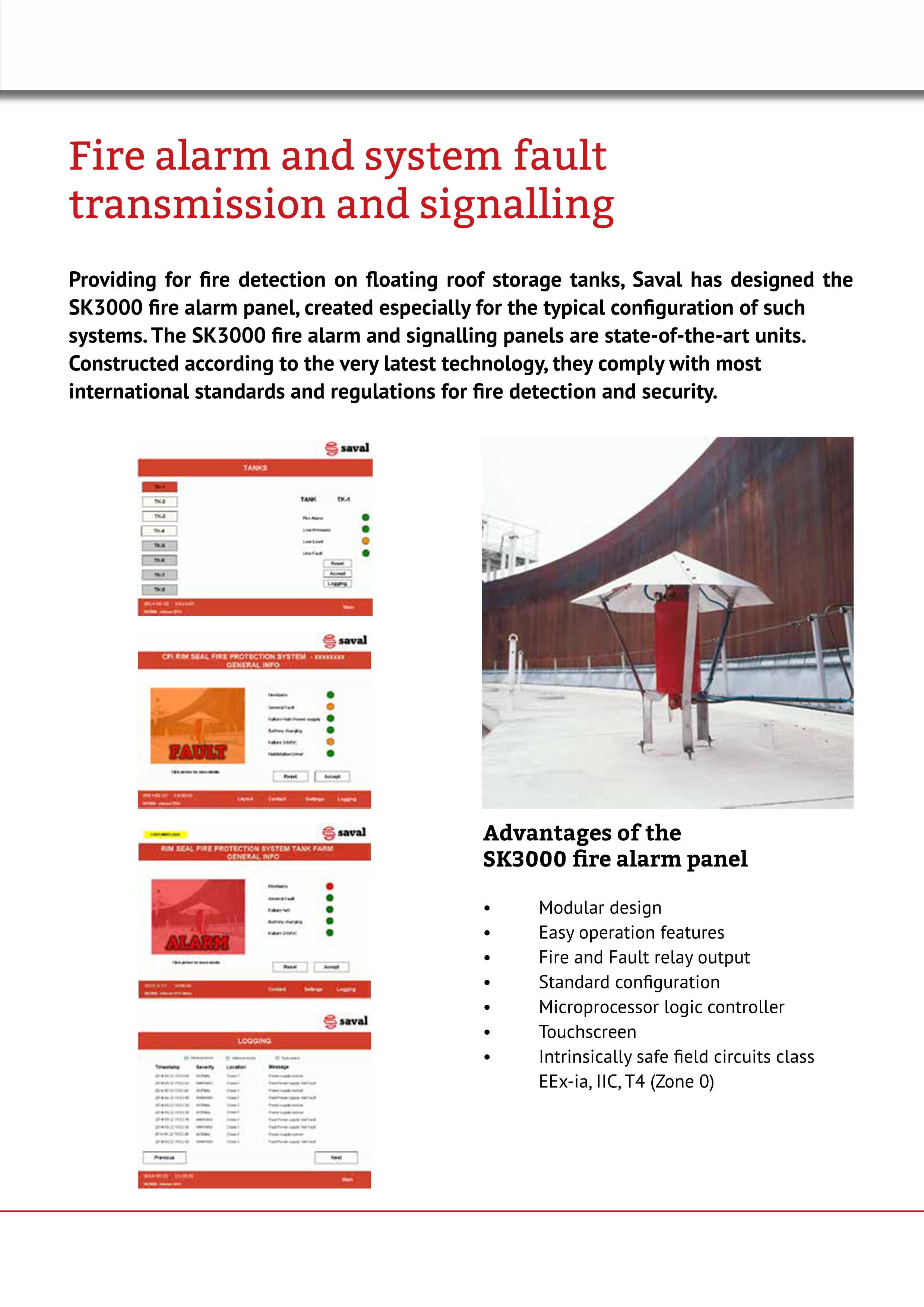

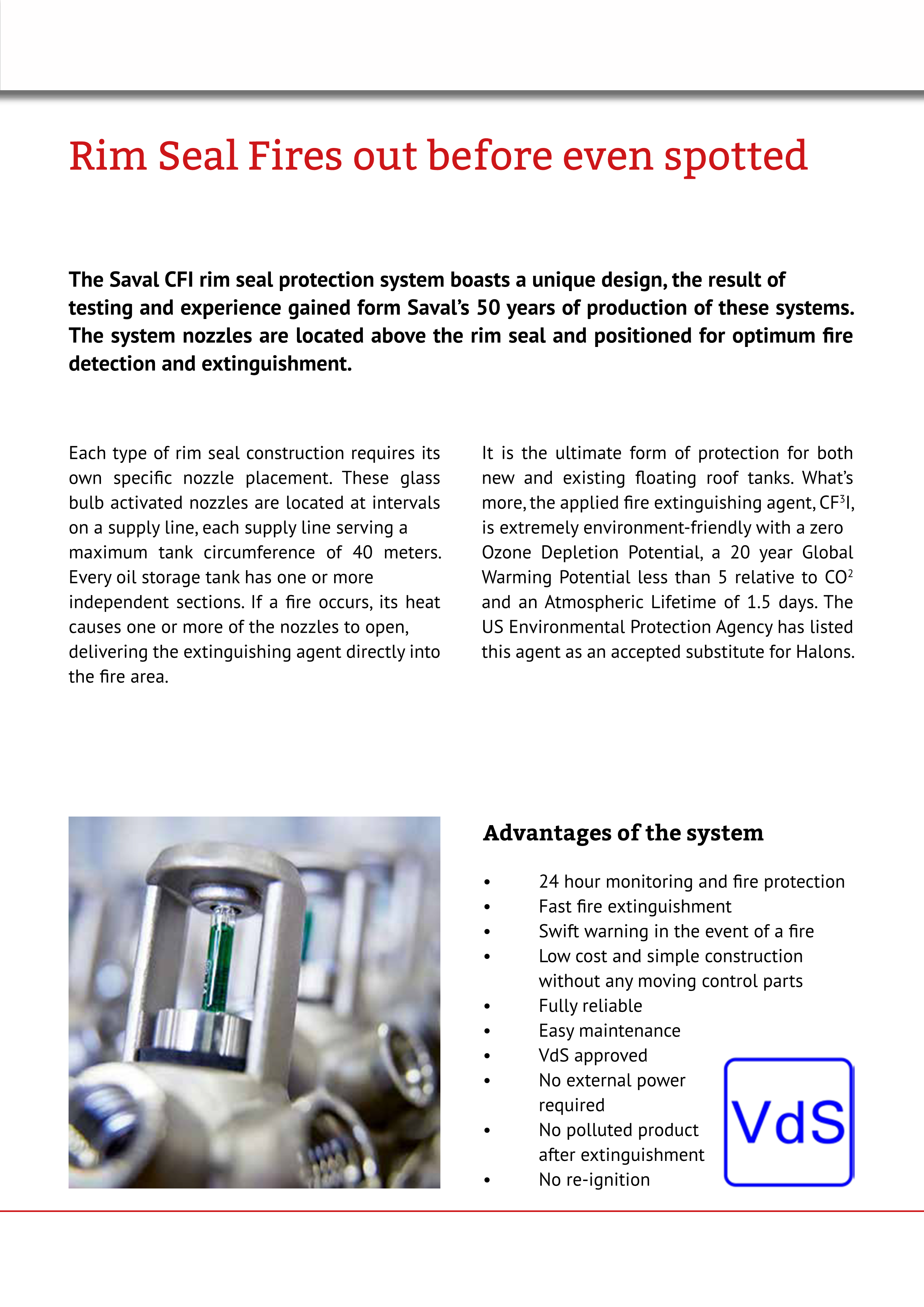

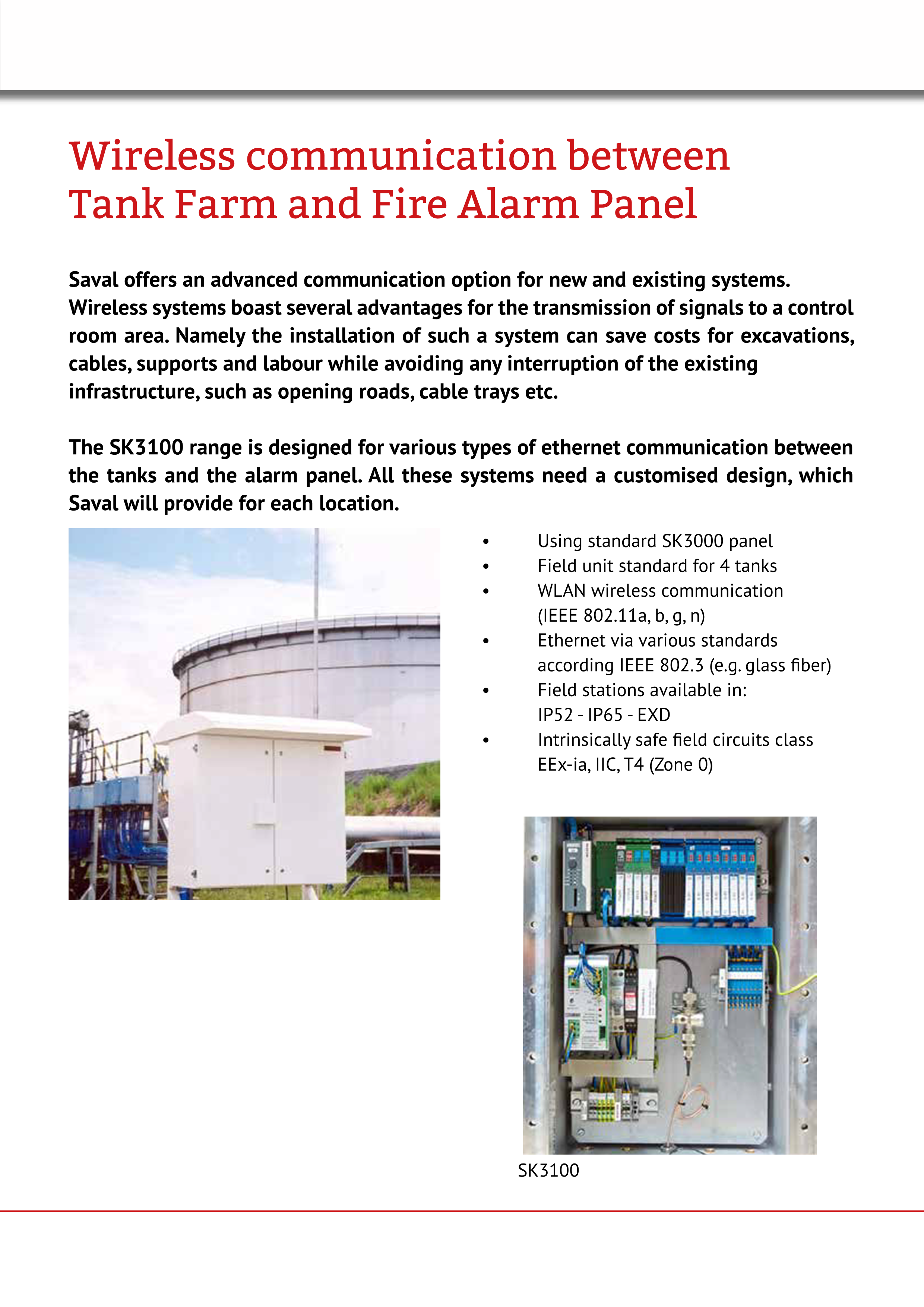

Detailed system layout, components and operating principles are illustrated in the manufacturer's official catalogue images shown below.
Key Highlights
- Dedicated fire protection for primary and secondary seals of external floating roof tanks
- Online fire detection with automatic fire extinguishing response
- Gas-based extinguishing using CF3I for rapid suppression of rim seal fires
- Engineered for early-stage detection and extinguishing of rim seal fires
Applications
- External floating roof crude oil storage tanks
- Refined product storage tank farms
- Petrochemical and chemical bulk storage facilities
- Strategic petroleum reserves and terminal operations
Product Details
Imagery shown above is reproduced from the manufacturer's official catalogue. Contact us for the latest data sheet, configuration options and integration support for your site.
